E3ZM

Sensore fotoelettrico compatto con robusta custodia in acciaio inox

Per i sensori induttivi in acciaio inox di alta qualità, vedere E2EH. Mentre per gli interruttori magnetici codificati non a contatto in acciaio inox di alta qualità, vedere F3S-TGR-N_C.

Custodia in acciaio inox resistente ai detergenti
IP67 e IP69k per la massima resistenza in ambienti umidi
Test ECOLAB e resistenza ai detersivi certificata

Confronta tutti i modelli Libreria CAD

Caratteristiche ed info per ordinare

Filtri prodotto

Azzera filtri

Funzioni comuni

Shape (1)

Cuboid ()

Sensing method (4)

Background suppression ()
Diffuse reflective ()
Retro-reflective ()
Through-beam ()

Sensing distance (min.) (2)

10 mm ()
100 mm ()

Setting method (2)

Fixed ()
Manual adjustment ()

Connection method (4)

Cable ()
Connector M8 - 4 pin ()
M12 Pre-wired connector ()
M8 Pre-wired connector 4 pin ()

Cable length (3)

0.3 m ()
2 m ()
5 m ()

Output type (2)

NPN ()
PNP ()

Operation mode (2)

Dark-ON ()
Light-ON ()

Response time (1)

1 ms ()

Material housing (1)

Stainless steel ()

Thread size (1)

Other ()

Width (1)

10.8 mm ()

Height (1)

32.2 mm ()

Depth (1)

21 mm ()

Type of light (3)

Infrared light ()
Polarity free red light ()
Polarized red light ()

Power supply voltage (1)

10-30 V ()

Features (1)

M.S.R. ()

Prodotto	Shape	Sensing method	Sensing distance	Sensing distance (min.)	Setting method	Connection method	Cable length	Output type	Operation mode	Response time	Material housing	Thread size	Width	Height	Depth	Type of light	Power supply voltage	Features	Description
E3ZM-D67	Cuboid	Diffuse reflective	1000 mm		Manual adjustment	Connector M8 - 4 pin		NPN	Dark-ON, Light-ON	1 ms	Stainless steel	Other	10.8 mm	32.2 mm	21 mm	Infrared light	10-30 V		Photoelectric sensor, diffuse, metal body, IP69K, 1m, NPN, M8 4-pin connector
E3ZM-D82 2M	Cuboid	Diffuse reflective	1000 mm		Manual adjustment	Cable	2 m	PNP	Dark-ON, Light-ON	1 ms	Stainless steel	Other	10.8 mm	32.2 mm	21 mm	Infrared light	10-30 V		Photoelectric sensor, Diffuse, metal body, IP69K, 1m, pre-wired, PNP, 2m cable
E3ZM-D82 5M	Cuboid	Diffuse reflective	1000 mm		Manual adjustment	Cable	5 m	PNP	Dark-ON, Light-ON	1 ms	Stainless steel	Other	10.8 mm	32.2 mm	21 mm	Infrared light	10-30 V		Photoelectric sensor, Diffuse, metal body, IP69K, 1m, Pre-wired, PNP Output
E3ZM-D82-S1J 0.3M	Cuboid	Diffuse reflective	1000 mm		Manual adjustment	M12 Pre-wired connector	0.3 m	PNP	Dark-ON, Light-ON	1 ms	Stainless steel	Other	10.8 mm	32.2 mm	21 mm	Infrared light	10-30 V		Photoelectric sensor, diffuse, metal body, IP69K, 1m, M12 4-pin stainless steel pigtail 0.3m, PNP
E3ZM-D87	Cuboid	Diffuse reflective	1000 mm		Manual adjustment	Connector M8 - 4 pin		PNP	Dark-ON, Light-ON	1 ms	Stainless steel	Other	10.8 mm	32.2 mm	21 mm	Infrared light	10-30 V		Photoelectric sensor, diffuse, metal body, IP69K, 1m, M8 4-pin, PNP
E3ZM-LS81H 2M	Cuboid	Background suppression	100 mm	10 mm	Fixed	Cable	2 m	PNP	Dark-ON, Light-ON	1 ms	Stainless steel	Other	10.8 mm	32.2 mm	21 mm	Polarity free red light	10-30 V		Photoelectric sensor, fixed background suppression, metal body, IP69K, 0.1m, PNP, 2m cable
E3ZM-LS81H 5M	Cuboid	Background suppression	100 mm	10 mm	Fixed	Cable	5 m	PNP	Dark-ON, Light-ON	1 ms	Stainless steel	Other	10.8 mm	32.2 mm	21 mm	Polarity free red light	10-30 V		Photoelectric sensor, fixed background suppression, metal body, IP69K, 0.1m, PNP, 5m cable
E3ZM-LS84H 2M	Cuboid	Background suppression	200 mm	10 mm	Fixed	Cable	2 m	PNP	Dark-ON, Light-ON	1 ms	Stainless steel	Other	10.8 mm	32.2 mm	21 mm	Polarity free red light	10-30 V		Photoelectric sensor, fixed background suppression, metal body, IP69K, 0.2m, PNP, 2m cable
E3ZM-LS84H 5M	Cuboid	Background suppression	200 mm	10 mm	Fixed	Cable	5 m	PNP	Dark-ON, Light-ON	1 ms	Stainless steel	Other	10.8 mm	32.2 mm	21 mm	Polarity free red light	10-30 V		Photoelectric sensor, fixed background suppression, metal body, IP69K, 0.2m, PNP, 5m cable
E3ZM-LS86H	Cuboid	Background suppression	100 mm	10 mm	Fixed	Connector M8 - 4 pin		PNP	Dark-ON, Light-ON	1 ms	Stainless steel	Other	10.8 mm	32.2 mm	21 mm	Polarity free red light	10-30 V		Photoelectric sensor, fixed background suppression, metal body, IP69K, 0.1 m, M8 4-pin, PNP output
E3ZM-LS86X	Cuboid	Background suppression	100 mm	10 mm	Fixed	Connector M8 - 4 pin		PNP	Light-ON	1 ms	Stainless steel	Other	10.8 mm	32.2 mm	21 mm	Polarity free red light	10-30 V		Photoelectric sensor, diffuse, BGS, 100mm, compact square, stainless steel, IP69K, red LED, L-on fixed, PNP, M8 4-pin connector
E3ZM-LS87H	Cuboid	Background suppression	150 mm	10 mm	Fixed	Connector M8 - 4 pin		PNP	Dark-ON, Light-ON	1 ms	Stainless steel	Other	10.8 mm	32.2 mm	21 mm	Polarity free red light	10-30 V		Photoelectric sensor, fixed background suppression, metal body, IP69K, 0.15 m, M8 4-pin, PNP output
E3ZM-LS89H	Cuboid	Background suppression	200 mm	10 mm	Fixed	Connector M8 - 4 pin		PNP	Dark-ON, Light-ON	1 ms	Stainless steel	Other	10.8 mm	32.2 mm	21 mm	Polarity free red light	10-30 V		Photoelectric sensor, fixed background suppression, metal body, IP69K, 0.2 m, M8 4-pin, PNP
E3ZM-LS89X	Cuboid	Background suppression	200 mm	10 mm	Fixed	Connector M8 - 4 pin		PNP	Light-ON	1 ms	Stainless steel	Other	10.8 mm	32.2 mm	21 mm	Polarity free red light	10-30 V		Photoelectric sensor, diffuse, BGS, 200mm, compact square, stainless steel, IP69K, red LED, L-on fixed, PNP, M8 4-pin connector
E3ZM-R61 2M	Cuboid	Retro-reflective	4000 mm	100 mm	Manual adjustment	Cable	2 m	NPN	Dark-ON, Light-ON	1 ms	Stainless steel	Other	10.8 mm	32.2 mm	21 mm	Polarized red light	10-30 V	M.S.R.	Photoelectric sensor, retro-reflective, metal body, IP69K, 4m, NPN, 2m cable
E3ZM-R81 2M	Cuboid	Retro-reflective	4000 mm	100 mm	Manual adjustment	Cable	2 m	PNP	Dark-ON, Light-ON	1 ms	Stainless steel	Other	10.8 mm	32.2 mm	21 mm	Polarized red light	10-30 V	M.S.R.	Photoelectric sensor, Retro-reflective, metal body, IP69K, 4m, PNP, 2m cable
E3ZM-R81 5M	Cuboid	Retro-reflective	4000 mm	100 mm	Manual adjustment	Cable	5 m	PNP	Dark-ON, Light-ON	1 ms	Stainless steel	Other	10.8 mm	32.2 mm	21 mm	Polarized red light	10-30 V	M.S.R.	Photoelectric sensor, Retro-reflective, metal body, IP69K, 4m, Pre-wired, PNP Output
E3ZM-R81-S1J 0.3M	Cuboid	Retro-reflective	4000 mm	100 mm	Manual adjustment	M12 Pre-wired connector	0.3 m	PNP	Dark-ON, Light-ON	1 ms	Stainless steel	Other				Polarized red light	10-30 V	M.S.R.	Photoelectric sensor, retro-reflective, metal body, IP69K, 4 m, M12 4-pin stainless steel pigtail 0.3 m, PNP output
E3ZM-R81-S3J 0.3M	Cuboid	Retro-reflective	4000 mm	100 mm	Manual adjustment	M8 Pre-wired connector 4 pin	0.3 m	PNP	Dark-ON, Light-ON	1 ms	Stainless steel	Other	10.8 mm	32.2 mm	21 mm	Polarized red light	10-30 V	M.S.R.	Photoelectric sensor, retro-reflective, metal body, IP69K, 4m, M8 4-pin stainless steel pigtail 0.3m, PNP output
E3ZM-R81Y-S1J 0.3M	Cuboid	Retro-reflective	4000 mm	100 mm	Manual adjustment	M12 Pre-wired connector	0.3 m	PNP	Dark-ON	1 ms	Stainless steel	Other	10.8 mm	32.2 mm	21 mm	Polarized red light	10-30 V	M.S.R.	Photoelectric sensor, retro-reflective, metal body, IP69K, 4m, M12 4-pin stainless steel pigtail 0.3 m, fixed dark-on, PNP output
E3ZM-R86	Cuboid	Retro-reflective	4000 mm	100 mm	Manual adjustment	Connector M8 - 4 pin		PNP	Dark-ON, Light-ON	1 ms	Stainless steel	Other	10.8 mm	32.2 mm	21 mm	Polarized red light	10-30 V	M.S.R.	Photoelectric sensor, retro-reflective, metal body, IP69K, 4m, M8 4-pin, PNP
E3ZM-T61 2M	Cuboid	Through-beam	15000 mm		Manual adjustment	Cable	2 m	NPN	Dark-ON, Light-ON	1 ms	Stainless steel	Other	10.8 mm	32.2 mm	21 mm	Infrared light	10-30 V		Photoelectric sensor, through-beam, metal body, IP69K, 15m, NPN, 2m cable
E3ZM-T81 2M	Cuboid	Through-beam	15000 mm		Manual adjustment	Cable	2 m	PNP	Dark-ON, Light-ON	1 ms	Stainless steel	Other	10.8 mm	32.2 mm	21 mm	Infrared light	10-30 V		Photoelectric sensor, through-beam, metal body, IP69K, 15m, PNP, 2m cable
E3ZM-T81 5M	Cuboid	Through-beam	15000 mm		Manual adjustment	Cable	5 m	PNP	Dark-ON, Light-ON	1 ms	Stainless steel	Other	10.8 mm	32.2 mm	21 mm	Infrared light	10-30 V		Photoelectric sensor, Through Beam, metal body, IP69K, 15 m, Pre-wired, PNP Output
E3ZM-T81-D 5M	Cuboid	Through-beam	15000 mm		Manual adjustment	Cable	5 m	PNP	Dark-ON, Light-ON	1 ms	Stainless steel	Other	10.8 mm	32.2 mm	21 mm	Infrared light	10-30 V		Photoelectric sensor, rectangular, SUS body, IR LED, thru-beam receiver 15 m, PNP, L-ON/D-ON selectable, 5 m cable
E3ZM-T81-L 5M	Cuboid	Through-beam	15000 mm		Manual adjustment	Cable	5 m	PNP	Dark-ON, Light-ON	1 ms	Stainless steel	Other	10.8 mm	32.2 mm	21 mm	Infrared light	10-30 V		Photoelectric sensor, rectangular, SUS body, IR LED, thru-beam emitter, 15 m, PNP, L-ON/D-ON selectable, 5 m cable
E3ZM-T81-S1J 0.3M	Cuboid	Through-beam	15000 mm		Manual adjustment	M12 Pre-wired connector	0.3 m	PNP	Dark-ON, Light-ON	1 ms	Stainless steel	Other	10.8 mm	32.2 mm	21 mm	Infrared light	10-30 V		Photoelectric sensor, through-beam, metal body, IP69K, 15 m, M12 4-pin stainless steel pigtail 0.3 m, PNP
E3ZM-T86	Cuboid	Through-beam	15000 mm		Manual adjustment	Connector M8 - 4 pin		PNP	Dark-ON, Light-ON	1 ms	Stainless steel	Other	10.8 mm	32.2 mm	21 mm	Infrared light	10-30 V		Photoelectric sensor, through-beam, metal body, IP69K, 15m, M8 4-pin, PNP
E3ZM-T88	Cuboid	Through-beam	800 mm		Manual adjustment	Connector M8 - 4 pin		PNP	Dark-ON, Light-ON	1 ms	Stainless steel	Other	10.8 mm	32.2 mm	21 mm	Infrared light	10-30 V		Photoelectric sensor, through-beam, 0.8m, compact square, stainless steel, infrared LED, internal slit, IP69K, PNP, M8-4pin connector

Nessun risultato trovato. Espandere la scelta del filtro.

Rimuovi tutti i filtri

Confronta prodotti Mostra altri prodotti

Accessori

Mounting brackets

Shape	Type	Material	Features	Order code
	M8 nuts	brass	100 pcs	ASMM0800
	M8 nuts	stainless steel		ASMM0801
	M12 nuts	brass		ASMM1200
	M18 nuts	brass		ASMM1800
		stainless steel		ASMM1802
		plastic	1 pc	ASMK1802 (8 mm thickness)
		plastic	100 pcs	ASMK1801 (4 mm thickness)
	M30 nuts	brass	100 pcs	ASMM3000
	M8 Washer	brass	1,000 pcs	ASZA0800
	M12 Washer	brass	1,000 pcs	ASZA1200
	M12 Washer	stainless steel	500pcs	ASZA1201
	M18 Washer	brass	100 pcs	ASZA1801
	M18 Washer	stainless steel	200 pcs	ASZA1802
	M30 Washer	brass	100 pcs	ASZA3001

E39/Y92E-B

Accessories

Mounting brackets

Shape	Type	Order code
	Quick access - snap fix for cylindrical sensors; sizes M8, M12, M18, M30	Y92E-BC08 Y92E-BC12 Y92E-BC18 Y92E-BC30
	Surface mounting for M18 cylindrical sensors (dia 18mm)	E39-L183
	Standard-surface mounting (for pre-wired or pigtail models)	E39-L1041
	Standard-backwall mounting	E39-L441
	Protection-wall mounting (for pre-wired or pigtail models)	E39-L1421
	Protection-surface mounting	E39-L981
	Telescope mounting	E39-L93FH
	3D rotation mounting	E39-EL4

1. The order references are examples for the E3Z sensor family. Refer to the sensor accessory datasheet E26E for the complete list of mounting brackets.

1. The order references are examples for the E3Z sensor family. Refer to the sensor accessory datasheet E26E for the complete list of mounting brackets.

Reflectors for retro-reflective photoelectric sensors

Shape	Type	Housing material	Features	Size in mm	Applicable Sensor		Order code
	General purpose reflectors	ABS base Acrylic surface	Surface screw mounting (diagonal holes)	40 × 60 × 7.5	Retro-reflective photoelectric sensors with and without M.S.R		E39-R1S
			Surface screw mounting (holes on one side only)	35.4 × 42.3 × 8			E39-R9
			Surface screw mounting (holes on one side only)	51.4 × 60.3 × 8.5			E39-R42
	Small size		Side screw mounting or surface selfadhesive	41.8 × 22.5 × 11			E39-R3
	Small size		Surface screw mounting	23 × 13.7 × 4.9			E39-R4
	Large size			100 × 100 × 9			E39-R8
	Large size			84.5 × 84.5 × 8.7			E39-R40
	High precision		Microtripel for improved performance with fine beam sensors	52 × 40 × 4.8	Recommended for fine beam coaxial models (E3NC-LH03, E3S-DB, E3T-SR4)		E39-R6
				30 × 45			E39-R12
				14 × 23 × 1			E39-R37-CA
				12 × 24			E39-R13
	Simple mounting		Round shape with centered mounting hole for simple screw mounting	Diameter: 84 Depth: 7.4	Photoelectric sensors with and without M.S.R.		E39-R7

Note: the ambient operating temperature is -25°C to 55°C unless otherwise specified

Shape	Type	Housing material	Features	Size in mm	Applicable Sensor		Order code
	Enhanced detergent resistance	PVC	Surface screw mounting IP69k after DIN 40050 part 9	40 × 60 × 7.5	Recommended for harsh environment sensors		E39-R50
		PET	Surface screw mounting IP69k after DIN 40050 part 9 Anti-fogging coating	40 × 60 × 7.5			E39-R50K
		PVC	Surface screw mounting IP69k after DIN 40050 part 9	20 × 60 × 6			E39-R51
	Highest detergent resistance	SUS316L Borosilicat	Surface screw mounting	43 × 30 × 5			E39-R16
	Heat resistant	Borosilicat	Surface screw mounting 450°C heat resistance Suitable for vacuum environment	95 × 51 × 8			E39-R47
	Non-fogging reflector	ABS Acrylic surface	Anti-fogging coating	40 × 60 × 7.5			E39-R1K
	Special polarizing	ABS base PMMA surface	Special polarizing filter to PET	44 × 80 × 8.5	E3ZM-B, E3FA-B, E3FB-B, E3S-DB		E39-RP1
	Oil-resistant Reflector	Methacrylate resin surface Aluminium, Stainless steel screws	Resistant to cutting oil	65.4 × 106 × 11.5	E3ZR-C		E39-R1R
	General purpose tape reflectors	Acrylic	Self adhesive Pre cut	35 × 10 × 0.6	Photoelectric sensors with and without M.S.R.		E39-RS1
				35 × 10 × 0.6		Optimised for E3T-SR4	E39-RS1-CA
				40 × 35 × 0.6			E39-RS2
				40 × 35 × 0.6		Optimised for E3T-SR4	E39-RS2-CA
				80 × 70 × 0.6			E39-RS3
				80 × 70 × 0.6		Optimised for E3T-SR4	E39-RS3-CA
			Self adhesive Cut-to-length, roll material	25 mm × 5 m			E39-RS25 5 m
				25 mm × 22.8 m			E39-RS25 22.8 m
				50 mm × 5 m			E39-RS50 5 m
				50 mm × 22.8 m			E39-RS50 22.8 m
	High precision tape reflectors		Self adhesive Pre cut	195 × 22	Recommended for fine beam and laser sensors (E3NC-LH03, E3Z-LR, E3S-DB_2)		E39-RS4
	High precision tape reflectors		Self adhesive Pre cut	108 × 46			E39-RS5

Note: Note: the ambient operating temperature is -25°C to 55°C unless otherwise specified

Come possiamo aiutarti?

Se hai domande o desideri richiedere un preventivo, contattaci o inviaci una richiesta.

Mandatemi un'offerta

Mandatemi un'offerta

Contattatemi

Caratteristiche

One mounting

Rugged housing

All our sensors are designed and tested to withstand vibration and mechanical shocks. The high grade stainless steel SUS 316L and the housing design of the E3ZM without protruding optics or adjusters, provides enhanced protection against mechanical damage. This not only ensures long sensor lifetime but significantly reduces the risk that cut-off or broken sensor parts are processed together with the food.

Tight connections

Very often the housings of sensors for hygienic environments are very tight but they share a common potential weakpoint: the connection between sensor and cable connector. If the wrong mounting torque is used the sealing may be too weak or even damaged resulting in water entry.

The highest protection against water entry is provided by pre-wired solutions. But pre-wired solutions are not flexible enough for easy replacement.

We offer a solution with highest protection but keeping the flexibility with stainless steel 'pigtails'.

Optimal mounting torque can be achieved with the XS5 snap mechanism.

Detergent resistance

The detergent resistant sensors are tested on alkaline and acid based detergents commonly used in the food industry. In comparison to conventional metal or plastic housing sensors, longer sensor lifetimes of 20 times or more can be achieved.

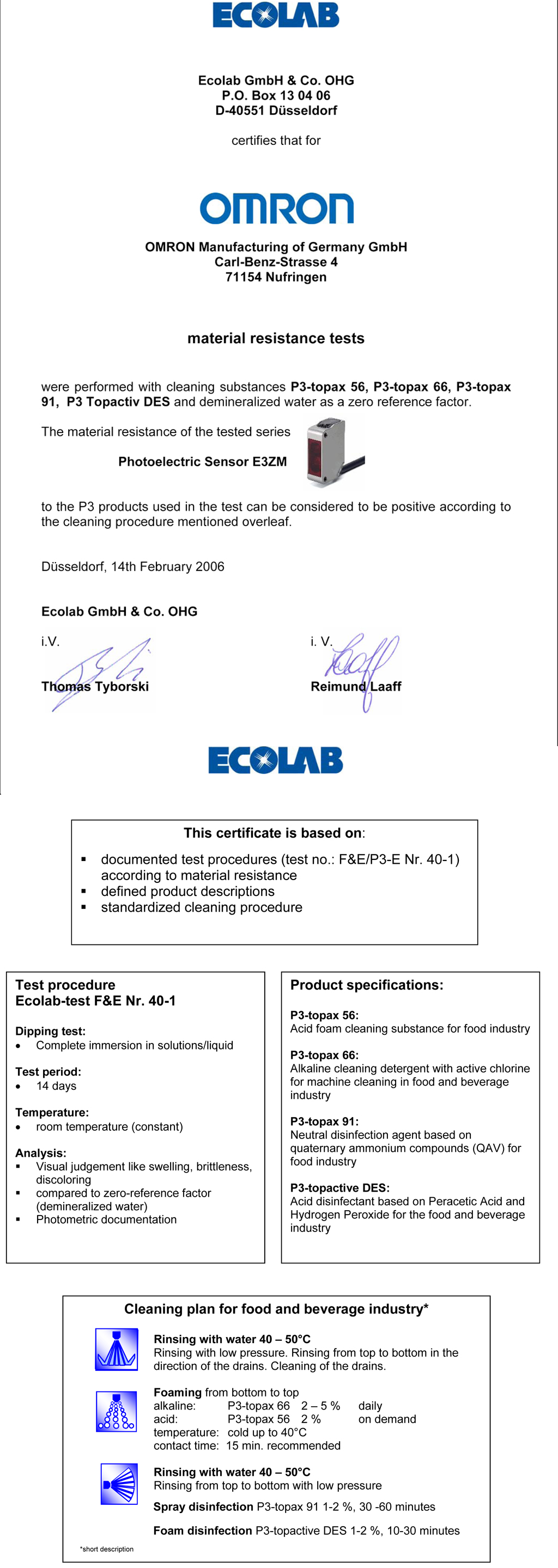

Ecolab

e3zm ecolab-2 prod

Smooth housing

The housing has been designed with the usage in hygienic environments in mind. In order to reduce areas where bacteria can grow, the sensors provide a smooth surface, rounded edges and high grade SUS 316L stainless steel or detergent resistant plastic material.

Informazioni tecniche

pes tech info 121 prod

pes tech info 122 prod

Prodotti

XS2

Set di cavi connettori M12
XS3

Set di cavi connettori M8
XS5C/XS5G

Connettori IDC stagni con gruppo pressofuso per collegamento con connettori M12
Y92E-S_PP

Cavi per connettori resistenti ai detergenti

Area di download

E3Z Brochure

itPDF 1,27 MB

da
de
en
es
fi
fr
ru
tr

E3ZM Photoelectric Sensor, Compact, Stainless steel Catalogo tecnico

itPDF 989 KB

de
en
es
fr
