E5_R / E5_R-T

Regolatori di processo digitali ad elevata velocità e precisione

La serie E5_R garantisce ingressi di misura di elevata precisione (0,01°C per Pt100) e un ciclo di campionamento e controllo di 50 ms per tutti e quattro i canali. L'esclusiva funzione di riduzione dell'overshoot del disturbo garantisce un controllo preciso e affidabile. La serie R può includere più loop in un'unica unità, con un massimo di 2 loop E5ER e 4 loop E5AR.

L48 x A96 x P110 / L96 x A96 x P110 mm
Modalità di controllo: 2-PID o ON/OFF
Uscita di controllo: tensione (impulsi), posizionamento valvola relè e lineare (mA)
Alimentazione: 100-240 Vc.a. o 24 Vc.a./Vc.c.
Supporto mediante software PC CX-Thermo

Confronta tutti i modelli Libreria CAD

Caratteristiche ed info per ordinare

Ordering information

Function	Loops	Input analog	Event Inputs	Number of outputs	Outputs	AUX outputs	Communication	Order code (96 × 96 mm)
Function	Loops	Input analog	Event Inputs	Number of outputs	Outputs	AUX outputs	Communication	100 to 240 VAC	24 VAC/DC
standard	1	1	2	2	QC,Q	4R	-	E5AR-Q4B AC100-240	E5AR-Q4B AC/DC24
standard	1	1	2	2	QC,Q	4R	RS-485	E5AR-Q43B-FLK AC100-240V
standard	1	1	6	2	QC,Q	4R	RS-485	E5AR-Q43DB-FLK AC100-240V
standard	1	1	6	4	QC,Q,C,C	4R	RS-485	E5AR-QC43DB-FLK AC100-240	E5AR-QC43DB-FLK AC/DC24
standard	max 2	2	4	2	QC,Q	4R	RS-485	E5AR-Q43DW-FLK AC100-240V	E5AR-QC43DB-FLK AC/DC24
standard	max 2	2	4	4	QC,Q,QC,Q	4R	RS-485	E5AR-QQ43DW-FLK AC100-240	E5AR-QQ43DW-FLK AC/24
standard	max 4	4	4	4	QC,Q,QC,Q	4R	RS-485	E5AR-QQ43DWW-FLK AC100-240V	E5AR-QQ43DW-FLK AC/24
standard	1	1	2	2	C,C	4R	-	E5AR-C4B AC100-240	E5AR-C4B AC/DC24
standard	1	1	2	2	C,C	4R	RS-485	E5AR-C43B-FLK AC100-240V
standard	1	1	6	2	C,C	4R	RS-485	E5AR-C43DB-FLK AC100-240V
standard	max 2	2	4	2	C,C	4R	RS-485	E5AR-C43DW-FLK AC100-240V
standard	max 4	4	4	4	C,C,C,C	4R	RS-485	E5AR-CC43DWW-FLK AC100-240	E5AR-CC43DWW-FLK AC/DC24
valve	1	1 + pot	4	2	R,R	4R	-	E5AR-PR4DF AC100-240	E5AR-PR4DF AC/DC24
valve	1	1 + pot	4	4	R,R,QC,Q	4R	RS-485	E5AR-PRQ43DF-FLK AC100-240	E5AR-PRQ43DF-FLK AC/DC24
standard	1	1	2	2	QC,Q	4R	DeviceNet	E5AR-Q4B-DRT AC100-240V	E5AR-Q4B-DRT AC24V
standard	1	1	2	4	QC,Q,C,C	4R	DeviceNet	E5AR-QC4B-DRT AC100-240V	E5AR-QC4B-DRT AC24V
standard	max 2	2	-	4	QC,Q,QC,Q	4R	DeviceNet	E5AR-QQ4W-DRT AC100-240V	E5AR-QQ4W-DRT AC24V
standard	1	1	2	2	C,C	4R	DeviceNet	E5AR-C4B-DRT AC100-240V	E5AR-C4B-DRT AC24V
standard	max 4	4	-	4	C,C,C,C	4R	DeviceNet	E5AR-CC4WW-DRT AC100-240V	E5AR-C4B-DRT AC24V
valve	1	1 + pot	-	2	R,R	4R	DeviceNet	E5AR-PR4F-DRT AC100-240V	E5AR-PR4F-DRT AC24V
valve	1	1 + pot	-	4	R,R,QC,Q	4R	DeviceNet	E5AR-PRQ4F-DRT AC100-240V	E5AR-PRQ4F-DRT AC24V
SV programmer	1	1	2	2	QC,Q	4R	-	E5AR-TQ4B AC100-240	E5AR-TQ4B AC/DC24
SV programmer	1	1	2	2	C,C	4R	-	E5AR-TC4B AC100-240	E5AR-TC4B AC/DC24
SV programmer	1	1	2	2	QC,Q	4R	RS-485	E5AR-TQ43B-FLK AC100-240
SV programmer	1	1	2	2	C,C	4R	RS-485	E5AR-TC43B-FLK AC100-240
SV programmer	1	1	10	2	QC,Q	10T	RS-485	E5AR-TQE3MB-FLK AC100-240
SV programmer	1	1	10	2	C,C	10T	RS-485	E5AR-TCE3MB-FLK AC100-240
SV programmer	1	1	10	4	QC,Q,C,C	10T	RS-485	E5AR-TQCE3MB-FLK AC100-240V	E5AR-TQCE3MB-FLK AC/DC24
SV programmer	max 2	2	4	2	QC,Q	4R	RS-485	E5AR-TQ43DW-FLK AC100-240
SV programmer	max 2	2	4	2	C,C	4R	RS-485	E5AR-TC43DW-FLK AC100-240
SV programmer	max 2	2	8	4	QC,Q,QC,Q	10T	RS-485	E5AR-TQQE3MW-FLK AC100-240	E5AR-TQQE3MW-FLK AC/DC24
SV programmer	max 4	4	8	2	C,C,C,C	10T	RS-485	E5AR-TCCE3MWW-FLK AC100-240	E5AR-TCCE3MWW-FLK AC/DC24
SV programmer	max 4	4	8	4	QC,Q,QC,Q	10T	RS-485	E5AR-TQQE3MWW-FLK AC100-240	E5AR-TCCE3MWW-FLK AC/DC24
SV programmer + valve	1	1 + pot	4	2	R,R	4R	-	E5AR-TPR4DF AC100-240	E5AR-TPR4DF AC/DC24
SV programmer + valve	1	1 + pot	8	4	R,R,QC,Q	10T	RS-485	E5AR-TPRQE3MF-FLK AC100-240	E5AR-TPRQE3MF-FLK AC/DC24

Note • Standard = heat and/or cool PID control, valve = valve positioning (relay up/down) (PRR)
• max 2 = 2 loops heat and/or cool or 1 loop cascade, ratio or remote SP
• max 4 = 4 loops heat and/or cool
• 1, 2 or 4 = number of analog universal input 1 + pot = 1 universal and 1 slide wire feedback from valve
• QC = voltage (pulse) or current (switch), Q = voltage (pulse), C = current, 4R = 4 two pole relay, 2T = two transistor output NPN

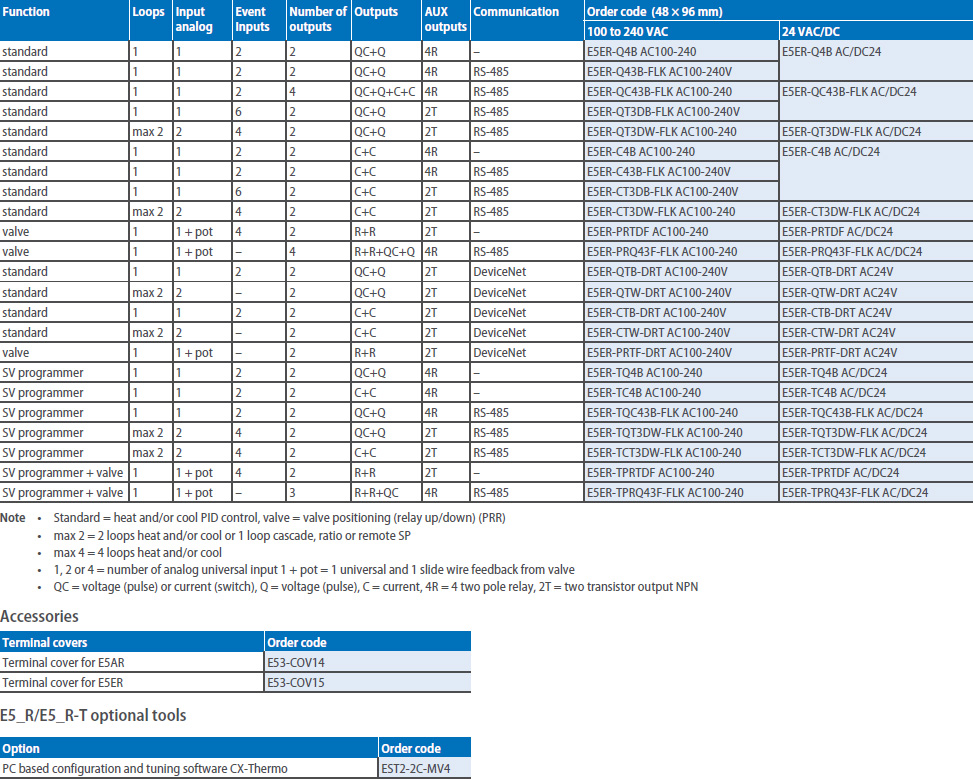

Function	Loops	Input analog	Event Inputs	Number of outputs	Outputs	AUX outputs	Communication	Order code (48 × 96 mm)
Function	Loops	Input analog	Event Inputs	Number of outputs	Outputs	AUX outputs	Communication	100 to 240 VAC	24 VAC/DC
standard	1	1	2	2	QC+Q	4R	-	E5ER-Q4B AC100-240	E5ER-Q4B AC/DC24
standard	1	1	2	2	QC+Q	4R	RS-485	E5ER-Q43B-FLK AC100-240V	E5ER-Q4B AC/DC24
standard	1	1	2	4	QC+Q+C+C	4R	RS-485	E5ER-QC43B-FLK AC100-240	E5ER-QC43B-FLK AC/DC24
standard	1	1	6	2	QC+Q	2T	RS-485	E5ER-QT3DB-FLK AC100-240V	E5ER-QC43B-FLK AC/DC24
standard	max 2	2	4	2	QC+Q	2T	RS-485	E5ER-QT3DW-FLK AC100-240	E5ER-QT3DW-FLK AC/DC24
standard	1	1	2	2	C+C	4R	-	E5ER-C4B AC100-240	E5ER-C4B AC/DC24
standard	1	1	2	2	C+C	4R	RS-485	E5ER-C43B-FLK AC100-240V
standard	1	1	6	2	C+C	2T	RS-485	E5ER-CT3DB-FLK AC100-240V
standard	max 2	2	4	2	C+C	2T	RS-485	E5ER-CT3DW-FLK AC100-240	E5ER-CT3DW-FLK AC/DC24
valve	1	1 + pot	4	2	R+R	2T	-	E5ER-PRTDF AC100-240	E5ER-PRTDF AC/DC24
valve	1	1 + pot	-	4	R+R+QC+Q	4R	RS-485	E5ER-PRQ43F-FLK AC100-240	E5ER-PRQ43F-FLK AC/DC24
standard	1	1	2	2	QC+Q	2T	DeviceNet	E5ER-QTB-DRT AC100-240V	E5ER-QTB-DRT AC24V
standard	max 2	2	-	2	QC+Q	2T	DeviceNet	E5ER-QTW-DRT AC100-240V	E5ER-QTW-DRT AC24V
standard	1	1	2	2	C+C	2T	DeviceNet	E5ER-CTB-DRT AC100-240V	E5ER-CTB-DRT AC24V
standard	max 2	2	-	2	C+C	2T	DeviceNet	E5ER-CTW-DRT AC100-240V	E5ER-CTW-DRT AC24V
valve	1	1 + pot	-	2	R+R	2T	DeviceNet	E5ER-PRTF-DRT AC100-240V	E5ER-PRTF-DRT AC24V
SV programmer	1	1	2	2	QC+Q	4R	-	E5ER-TQ4B AC100-240	E5ER-TQ4B AC/DC24
SV programmer	1	1	2	2	C+C	4R	-	E5ER-TC4B AC100-240	E5ER-TC4B AC/DC24
SV programmer	1	1	2	2	QC+Q	4R	RS-485	E5ER-TQC43B-FLK AC100-240	E5ER-TQC43B-FLK AC/DC24
SV programmer	max 2	2	4	2	QC+Q	2T	RS-485	E5ER-TQT3DW-FLK AC100-240	E5ER-TQT3DW-FLK AC/DC24
SV programmer	max 2	2	4	2	C+C	2T	RS-485	E5ER-TCT3DW-FLK AC100-240	E5ER-TCT3DW-FLK AC/DC24
SV programmer + valve	1	1 + pot	4	2	R+R	2T	-	E5ER-TPRTDF AC100-240	E5ER-TPRTDF AC/DC24
SV programmer + valve	1	1 + pot	-	3	R+R+QC	4R	RS-485	E5ER-TPRQ43F-FLK AC100-240	E5ER-TPRQ43F-FLK AC/DC24

Note • Standard = heat and/or cool PID control, valve = valve positioning (relay up/down) (PRR)
• max 2 = 2 loops heat and/or cool or 1 loop cascade, ratio or remote SP
• max 4 = 4 loops heat and/or cool
• 1, 2 or 4 = number of analog universal input 1 + pot = 1 universal and 1 slide wire feedback from valve
• QC = voltage (pulse) or current (switch), Q = voltage (pulse), C = current, 4R = 4 two pole relay, 2T = two transistor output NPN

Accessories

Terminal covers	Order code
Terminal cover for E5AR	E53-COV14
Terminal cover for E5ER	E53-COV15

E5_R/E5_R-T optional tools

Option			Order code
PC based configuration and tuning software CX-Thermo			EST2-2C-MV4

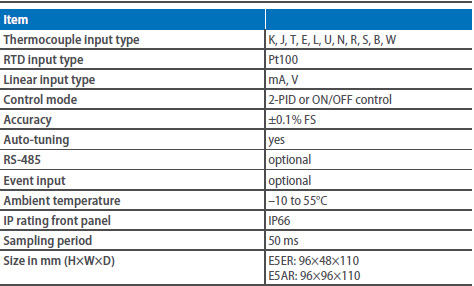

Specifications

Item
Thermocouple input type	K, J, T, E, L, U, N, R, S, B, W
RTD input type	Pt100
Linear input type	mA, V
Control mode	2-PID or ON/OFF control
Accuracy	±0.1% FS
Auto-tuning	yes
RS-485	optional
Event input	optional
Ambient temperature	-10 to 55°C
IP rating front panel	IP66
Sampling period	50 ms
Size in mm (H×W×D)	E5ER: 96×48×110 E5AR: 96×96×110

Come possiamo aiutarti?

Se hai domande o desideri richiedere un preventivo, contattaci o inviaci una richiesta.

Mandatemi un'offerta

Contattatemi

L'angolo dell'esperto

Applications

Mixing two flows: Ratio Control

Used in applications where a secondary flow needs to be mixed in an exact ratio to the main flow, as in colouring paint, mixing yoghurt with jam and chloride with water.

Controlling a processing vessel

In a fermentor, tight control over all the parameters such as temperature, pH, level and/or pressure is essential for a good product.

Temperature and Pressure interaction in an autoclave

Sterilizing products at high temperatures under pressure demands a fast and accurate controller like the E5_R.
